Porsche 356 Spark Plugs
How to inspect, gap, and install spark plugs on a 356 engine — and what they tell you when you pull them.
A spark plug change is a ten-minute job. But pulling four plugs and reading them in cylinder order gives you more information about the condition of each cylinder than almost any other ten minutes you can spend on the engine. Colors and deposits tell you whether a cylinder is running rich or lean, burning oil, or misfiring — and which one. That diagnostic value is the main reason to pull plugs at every oil change, not just when they need replacing.
The video for this page is the Registry’s Spark Plugs workshop video, presented by Tim Berardelli, who has professionally rebuilt 356 engines for more than 25 years.
Which plug goes in which engine
All 356 pushrod engines use a 14mm gasket-seat plug with standard reach. The heat range varies by engine. The table below lists the factory Bosch plug and its modern NGK equivalent. Heat-range numbers are not consistent across brands, so cross-reference rather than assuming the numbers line up (see the chart below).
| Engine | Factory Bosch | NGK | Gap |
| 1500 Normal (Pre-A) | W225T1 | BP6HS | 0.5–0.7 mm |
| 1500S (Pre-A) | W240T1 | BP7HS | 0.5–0.7 mm |
| 1600 Normal (A/B/C) | W225T1 | BP6HS | 0.5–0.7 mm |
| 1600S / Super (A, B T5) | W240T1 | BP7HS | 0.5–0.7 mm |
| 1600S / Super (B T6, C) | W240T1 / W260T1 | BP7HS | 0.5–0.7 mm |
| S-90 / SC | W225T7 / W260T1 | BP7HS or B7HS | 0.5–0.7 mm |
| Carrera (4-cam) | W265T1 or colder | BP9HS | 0.4–0.5 mm |
Three brands cover 356 service: Bosch (the factory fitment), NGK (the most common modern replacement), and Beru (German; the Ultra X has a solid silver center electrode).
Do not use extended-reach plugs. The factory 356 plug is standard reach, the thread depth that seats it in the head. A longer-reach plug threads deeper into the chamber and can strike the piston, causing significant engine damage. The tip is the electrode; the concern here is reach, not the tip. If a plug catalog lists an “E” or “Extended” suffix, check the reach before installing.
The original NOS plugs (W225T1, W240T1) are colder than their modern equivalents and foul on today’s higher-octane, lower-lead fuels. Keep period plugs in the tool kit; run the modern equivalents in the engine. The NGK BP6HIX iridium variant, the non-resistor version, is the modern long-life choice for daily drivers: same heat range and reach, smaller center electrode, roughly double the change interval.

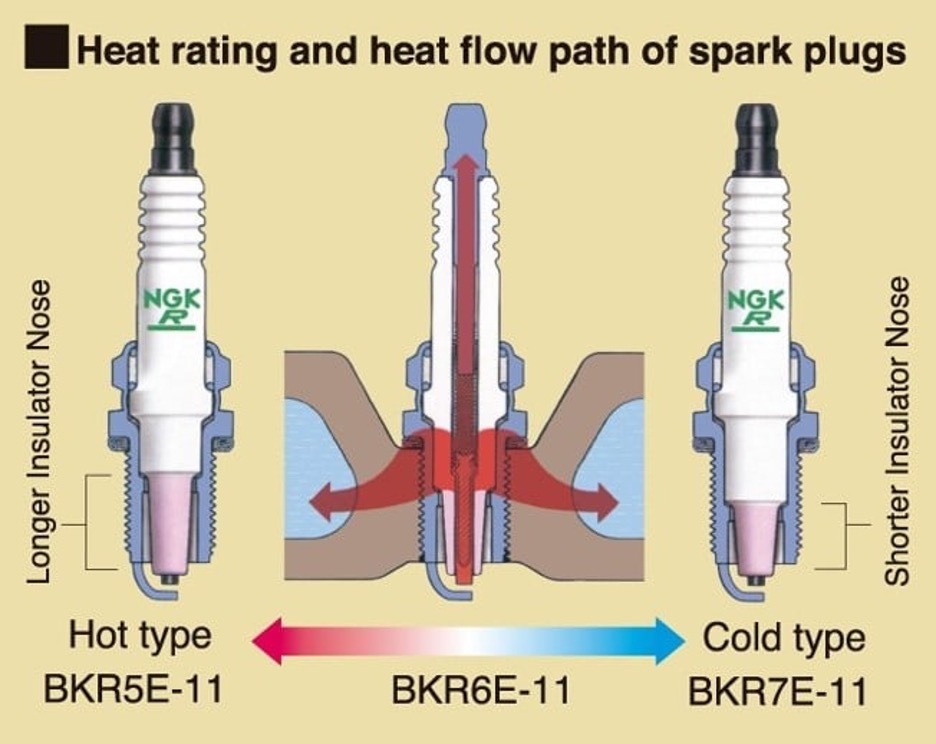

Heat rating and heat flow, hot versus cold plug. Courtesy Niterra Co., Ltd. Example of heat transfer only; the NGK “R” (resistor) plug numbers shown are modern references and do not apply to a 356.

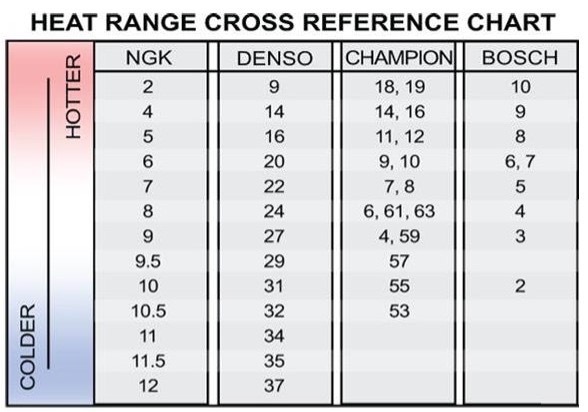

Heat-range cross-reference across brands. Courtesy Rennlist.The procedure
Pull plugs cold, not hot. Aluminum heads and steel plugs expand and contract at different rates. A plug pulled from a hot head can strip threads on the way out. Let the engine sit overnight if possible; pull the plugs cold the next morning.
One wire at a time. Pull one spark plug wire, service that cylinder, reinstall the wire before moving on. The 356 fires 1-4-3-2, and the distributor cap is counter-clockwise (viewed from the front). Crossing wires between sequential cylinders produces a rough three-cylinder sound and can backfire through the intake.
Pull wires by the boot, not the wire. Twist a quarter-turn before pulling to break the seal if the boot has glazed onto the insulator. Never pry a boot with a screwdriver — the ceramic insulator cracks, and a cracked insulator may run fine for a few minutes and then fail in traffic.
Tool choices. The factory plug wrench, the German extendable socket, and the Matco pivoting-head ratchet shown in the video all work. The most-cited 356Talk method for cylinder #3 access is Harlan Halsey’s rubber-hose technique: slip a 3–6 inch length of 3/8-inch fuel hose over the ceramic insulator and thread the plug in by hand. The hose grips with enough friction to drive the plug but slips if the plug starts to cross-thread. No socket clearance needed for reinstall. For removal, you still need a socket.
Lay the plugs in cylinder order on a clean rag. Read them before cleaning or gapping. The color and deposits tell you what each cylinder is doing. See Section 4 below.
Factory Helicoils. Every 356 ABC pushrod head from roughly 1957 onward came factory Helicoiled. The thread you are turning against is steel, not aluminum. If a plug goes in by hand and then binds, stop. Back it out, clean the threads with a back-tap thread chaser (not a standard tap — a tap removes metal and can pull the Helicoil out), and try a different plug to confirm the plug itself is not the issue.
Gap and torque
Set the gap with a wire feeler gauge, not a flat blade. Wire gauges read the actual spark distance; flat gauges hang up on the side electrode. Check every new plug before it goes in the head — shipping knocks side electrodes around even on plugs labeled “pre-gapped.”
Gap — points ignition: .024 to .026 inch. The stock coil does not have the reserve voltage to drive a wider gap reliably as points wear.
Gap — Pertronix or modern coil: .028 to .030 inch. Larger gap gives a bigger spark kernel; improves cold-start on modern fuels.
Factory spec: 0.5 to 0.7 mm (.020 to .028 inch). All 356 pushrod engines.
There are two accepted tightening methods. Pick one and do not combine them.
Factory turn-after-seat method (faster, no wrench needed): Thread in by hand until the gasket contacts the head. New plug: add a half turn. Reused plug: add 1/16 turn (the gasket already crushed on the first install).
Torque method: 18–22 ft-lb dry threads (NGK and Bosch ranges overlap here). Reduce to 15–18 ft-lb if you applied Never-Seez. A click-type or beam wrench on a 13/16 socket.
Do not apply a torque value and then add a half turn. That is double-tightening. Both major manufacturers advise against Never-Seez; if you use it, reduce torque 15–20 percent. Lubricated threads reach the torque reading at lower clamp load.
Reading what you find
Lay the four plugs in cylinder order. Compare them to each other. Consistent appearance across all four means the engine is balanced. Differences tell you where to look. The goal is a light tan to medium brown insulator nose — that indicates normal combustion, correct mixture, correct timing, and correct heat range.
| Appearance | Meaning | Action |
| Light tan to medium brown | Normal combustion | No action needed |
| White or bleached insulator | Running lean, or plug too hot | Check mixture and air leaks; if mixture is correct, step plug one range colder |
| Black dry fluffy soot | Running rich, or plug too cold | Check mixture screws and float level; verify heat range |
| Black oily deposits | Oil burning — rings, valve guides, or stem seals | One oily cylinder: compression test. All four oily: general wear |
| Blistered white insulator, melted electrode | Pre-ignition or detonation | Stop driving. Check timing, mixture, and octane before running again |
| Wet fuel, no firing | Cylinder not firing — ignition or fuel fault | Swap wire to adjacent cylinder; if fault follows, it’s the wire |
| Bent or broken ground electrode | Mechanical contact with piston — wrong plug reach | Verify plug reach is correct. Never reuse a mechanically damaged plug |
Indexing: gap toward the intake
Spark plug indexing is one of those engine-building details that experienced builders use when they want every variable as consistent as possible. Orienting the plug gap in a chosen direction, usually toward the intake valve, controls one more variable inside the combustion chamber. Tim Berardelli indexes plugs because, in his experience, it is a worthwhile tuning step that can also contribute to a small performance gain.
The honest caveat: no dyno sheets exist proving power gains on a 356 flat-four. NGK, whose plugs we recommend here, puts the typical gain on other engines at less than one percent of output and notes the best index cannot be known without a dyno, so on a 356 the realistic gain is small. The fully defensible benefit is diagnostic: indexed plugs read more consistently, which makes the health check and tuning easier to interpret.
How to do it: Put a marker line on the outside of your plug socket aligned with the gap opening of the plug. Install the plug without torquing; check where the mark points when hand-tight plus a quarter turn (where the gasket begins to crush). If the mark is not pointing toward the intake valve side of that cylinder, swap to a different plug and try again. Thread angles vary by manufacturing tolerance — you can usually find four plugs from a starting set of six that index correctly. Keep a few spares and sort them as you go.
Quick reference specs
Thread size: 14mm, gasket seat, standard reach. All 356 pushrod engines.
Socket size: 13/16 inch.
Gap (points ignition): .024–.026 inch (0.61–0.66 mm)
Gap (Pertronix or modern coil): .028–.030 inch (0.71–0.76 mm)
Factory gap spec: 0.5–0.7 mm (.020–.028 inch)
Torque, dry threads, new plug: 18–22 ft-lb (25–30 Nm), or hand-tight to seat plus ½ turn
Torque, dry threads, reused plug: 15–18 ft-lb, or hand-tight to seat plus 1/16 turn
Torque, with Never-Seez: reduce by 15–20 percent
Change interval: every 12,000 miles (Vic Skirmants); inspect at every oil change
Firing order: 1-4-3-2, distributor cap counter-clockwise (viewed from front)
Disclaimer
Disclaimer. Working on a Porsche 356 is inherently dangerous. The procedures, references, and recommendations contained in this webpage and any videos or attachments reflect the experience of contributing 356 Registry members. They are not a substitute for professional training, factory service literature, or your own judgment about what is safe in your specific situation. The 356 Registry, its officers, and the contributors quoted here make no warranty of any kind regarding the safety, accuracy, or completeness of the information. You can damage the car, damage your tools, or injure yourself or others. Use at your own risk.
Last updated June 21, 2026
